Mitsubishi Multi-Zone Mini-Splits in Pomona, CA
Real-talk answer: Pomona Mitsubishi HVAC installs and services Mitsubishi MXZ and MXZ-SM multi-zone mini-splits across Pomona 91766 to 91768, ideal for multi-bedroom Phillips Ranch and Ganesha Hills homes; one outdoor unit drives 2 to 8 heads mixing wall, floor, and ceiling units, and three-to-four-zone installs run $9,000-$20,000, so call (213) 799-8423 or book online.
The basics
- MXZ / MXZ-SM multi-zone service and installs across Pomona 91766, 91767, 91768
- One outdoor unit, 2-8 indoor heads (MXZ-SM36/42/48 classes)
- Mix M-Series wall (MSZ), floor (MFZ), and ceiling (MLZ) heads on one condenser
- Hyper-Heat available: MXZ-SM..MHZ
- 3-4 zone installed band $9,000-$20,000
- Common faults: E6-EB communication, P4/P5 condensate per head, U-codes outdoor
- In-warranty units to authorized service first
When does a Pomona home need multi-zone?
Once you are cooling three or more rooms, running separate single-zone units clutters the yard and costs more overall. A multi-zone Mitsubishi system, especially the current MXZ-SM SMART MULTI, puts one outdoor unit to work driving several heads. That suits a 1990s Phillips Ranch two-story or a Ganesha Hills hillside home with bedrooms upstairs and living space down, each on its own setpoint.
| Home | Mitsubishi setup | Installed band |
|---|---|---|
| 3-bedroom ranch | MXZ-SM36 + 3 MSZ heads | $9,000-$14,000 |
| 4-bedroom two-story | MXZ-SM42/48 + 4-5 heads | $12,000-$18,000 |
| Whole-home, cold-climate margin | MXZ-SM..MHZ Hyper-Heat + heads | $14,000-$20,000 |
Why is the SMART MULTI platform different?
MXZ-SM simplifies the older "C" multi-zone line. It is compatible with M-Series, P-Series, and CITY MULTI indoor units, so a single outdoor unit can run a mix of wall heads, floor consoles, and ceiling cassettes. That flexibility lets us match the head to the room, an MFZ floor console replacing an old baseboard in a Lincoln Park parlor, an MLZ cassette in a finished Hacienda den, without committing the whole house to one style.
Which MXZ-SM and indoor heads go on a Pomona home?
The platform is sized by the outdoor unit and then built out with whatever indoor units the rooms want:
- MXZ-SM36NAMHZ: the smaller whole-home class, roughly three heads, for a three-bedroom Hacienda or Westmont ranch.
- MXZ-SM42NAMHZ / MXZ-SM48NAMHZ: the larger classes driving four to eight heads, for a 1990s Phillips Ranch two-story or a Ganesha Hills hillside home with bedrooms up and living space down.
- MSZ wall heads: the default for bedrooms and living rooms; MSZ-FS where you want the 3D i-see sensor and top efficiency.
- MFZ-KJ floor console: sits low where an old baseboard heater was, ideal in a Lincoln Park parlor with no wall height for a high head.
- MLZ-KP ceiling cassette (EZ FIT): a one-way recessed cassette that fits between joists for a finished Hacienda den where you want no visible wall unit.
Because MXZ-SM accepts M-Series, P-Series, and CITY MULTI indoor units, one outdoor unit can run any mix of these at once.
What goes wrong on a multi-zone system?
Per-head problems look like single-zone problems: P4/P5 condensate, P6 freeze protection from a dirty filter, P1/P2 thermistor drift. The multi-zone-specific failures are communication faults, usually a loose or corroded S1/S2/S3 connection. Outdoor U-codes affect every zone at once. We trace the wiring and read the board rather than guessing which head is the culprit.
| Code(s) | Meaning | Scope / component |
|---|---|---|
| P4 / P5 | Drain sensor/float or drain pump abnormal | Single head; condensate drain/pump |
| P6 | Freeze / overheat protection | Single head; dirty filter or coil |
| P1 / P2 / P9 | Thermistor open or short | Single head; room/pipe/coil sensor |
| E6 / E7 / E8 / E9 | Indoor-outdoor communication fault | Whole system; S1/S2/S3 wiring or board |
| EA / EB | Inter-unit cable / wiring connection | Whole system; miswire or loose terminal |
| U6 / U2 / U9 | Inverter/compressor, discharge temp, voltage | Whole system; outdoor inverter or compressor |
What does a multi-zone retrofit involve in a Pomona two-story?

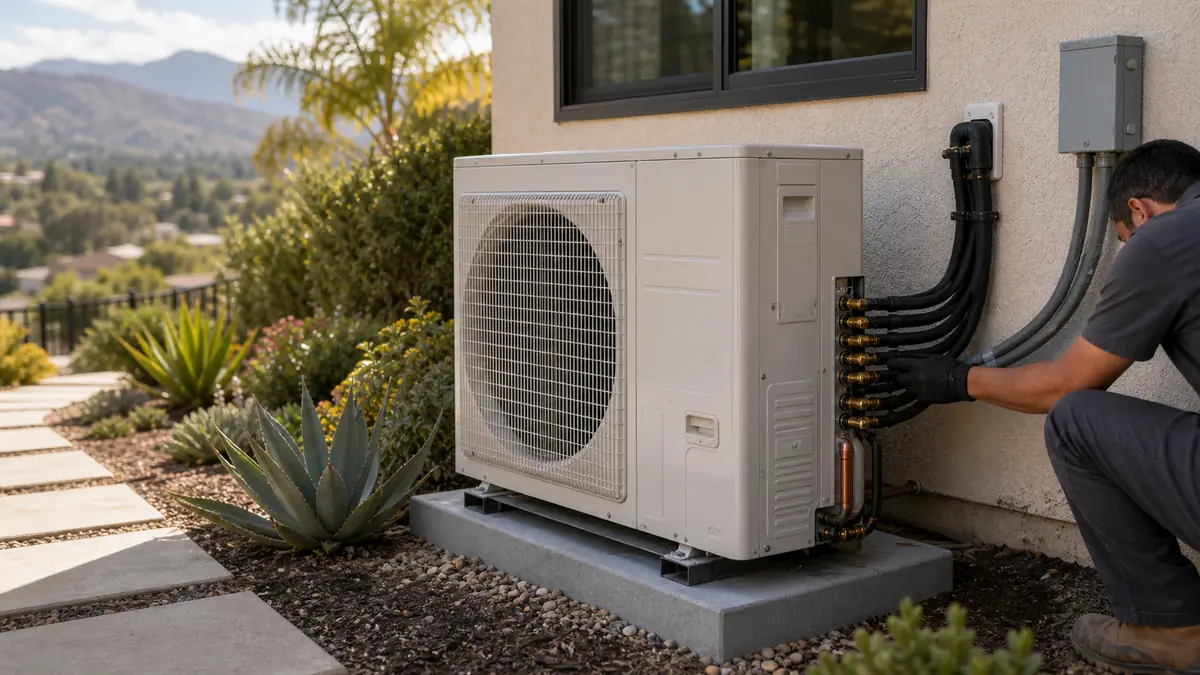

The work splits into the outdoor unit, the line-set network, and the heads. We set one MXZ-SM condenser on a pad or wall bracket, then run a separate insulated line set from it to each indoor head, which on a two-story Phillips Ranch home means routing pipe up an exterior wall or through a closet chase rather than tearing open finished ceilings. Each head gets its own condensate path and the shared S1/S2/S3 communication cable. The electrical is one circuit to the outdoor unit, though a larger MXZ-SM48 on an older panel may need a subpanel, which we flag at the site walk. Title-24 applies, so the job carries a permit and HERS verification of charge and airflow, and we book the rater as part of the project.
Multi-zone, several single-zones, or ducted: which wins?
For three or more rooms, a single MXZ-SM usually beats a yard full of separate single-zone condensers on cost per zone, footprint, and service simplicity. Separate single-zone pairs make sense only when rooms run on wildly different schedules or you want each zone fully independent of the others. Ducted SVZ/MVZ wins when you want a conventional-looking home with hidden registers and no visible heads, and the home already has, or can fit, a tight duct system. The honest tradeoff: multi-zone gives per-room control and easy retrofit, ducted gives an invisible install, and several single-zones give maximum independence at the highest total cost.
How do you keep zones from fighting?
Oversize a multi-zone and it short-cycles, never wrings out the humidity, and leaves a muggy Pomona evening feeling clammy. We match the outdoor unit to the combined load and each head to its own room, then run control through kumo cloud or wired controllers so the zones pull together instead of against each other. Nowhere does right-sizing carry more weight than on a multi-zone. See smart thermostat setup for the controls.
Common questions
How many rooms can one Mitsubishi outdoor unit handle?
The current MXZ-SM SMART MULTI platform drives roughly 2 to 8 indoor heads off a single outdoor unit, depending on the model (36, 42, or 48 thousand BTU classes). That covers most Pomona homes, from a three-bedroom ranch to a larger Phillips Ranch two-story, on one condenser.
Can I mix wall heads, floor consoles, and ceiling cassettes?
Yes. MXZ-SM is compatible with M-Series, P-Series, and CITY MULTI indoor units, so you can run MSZ wall heads in bedrooms, an MFZ floor console where a baseboard used to be, and an MLZ ceiling cassette in a finished room, all on one outdoor unit.
What does a 3-to-4-zone Mitsubishi install cost in Pomona?
Typically $9,000 to $20,000 installed, depending on head count, line-set runs, and whether you choose Hyper-Heat. A larger whole-home job with long runs through a two-story can reach the top of that band. We price it after measuring loads room by room.
If one head fails, does the whole system go down?
Not usually. A single head with a P-code condensate or thermistor fault can often be isolated while the rest keep running. A communication fault (E6 through EB) or an outdoor U-code can affect the whole system, which is why we read the code at the board before assuming the worst.
Is one multi-zone outdoor unit better than several single-zone condensers?
For three or more rooms, usually yes. One MXZ-SM outdoor unit clears the side yard, costs less per zone than separate condensers, and gives a single point of service. Separate single-zone pairs win only when rooms have wildly different run patterns or you want each zone fully independent. We weigh your layout and tell you which pencils out.
Will a multi-zone short-cycle if some rooms are off?
It can if the system is oversized for the heads actually running, which is exactly why right-sizing matters more on multi-zone than anywhere else. We match the MXZ-SM to the combined load and each head to its room so the inverter can throttle down instead of slamming on and off, which is what leaves a Pomona evening feeling muggy.
